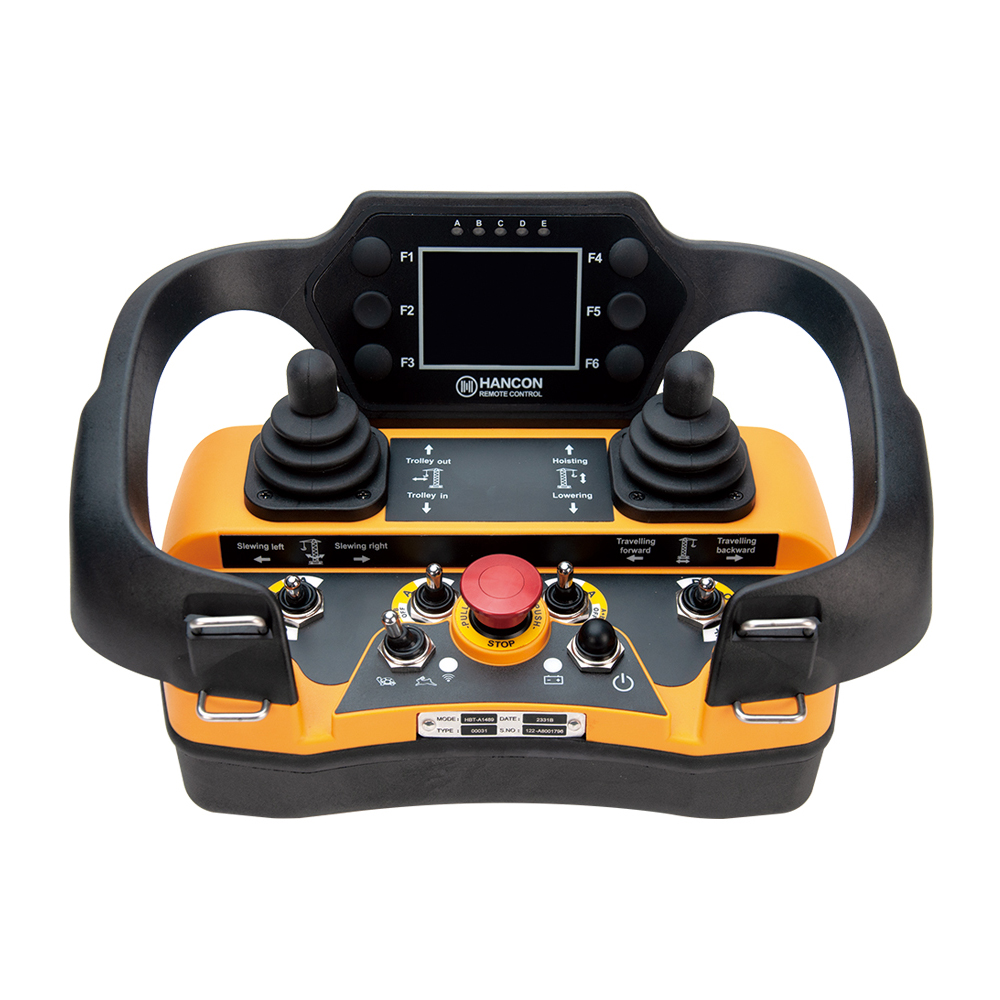

HBT-AU-MAGIC
The fastened engineering plastic casing ensures that all functional components are protected from external mechanical damage.
The automatic frequency function can provide reliable wireless signal transmission, equipped with digital frequency hopping
Operation time:Continuously working for about 10 hours (rechargeable lithium battery) after charging.
Rich graphic display functions
This transmitter can be equipped with 1-6 operating levers or 2-3 operating handles (continuously variable in the X/Y or Z axis direction).
This transmitter is equipped with an emergency stop switch, complies with EN13849:2008cat.3, PL=e standard.
This transmitter can be equipped with multiple toggle switches, buttons, gear switches, and potentiometers to operate and control various functions; For example, the start/stop, acceleration and deceleration of the engine, sound signals, and flow and speed control of the hydraulic system. Adopting high-quality operating levers and toggle switches, it has a good operating feel.
The operating speed of lifting machinery is positively proportional to the displacement angle of the operating rod.
It can be equipped with 5 LED lights and a 2.8 inch LCD color display screen to indicate and display the feedback value of the lifting machinery. This remote control, can be adapted to various types of hydraulic valves on the market.
The automatic frequency can provide reliable wireless signal transmission, and is designed with enhanced multiple anti- interference capabilities, equipped with digital frequency hopping technology, effectively ensuring free operation without interference at (433MHz/868MHz). Other frequency can also be customized according to the laws and regulations of different countries.
| Model No. | HBT-AU-MATE |
| Real Time | Real time Communication |
| Frequency control | PLL phase locked loop |
| ID | 32bit >4.2 Billion |
| Distance | >100 Meters |
| Color display | Yes |
| Low voltage | Audible and visual alarm(6.0~6.5VDC) |
| Malfunctionalarm | Multiplecombinationsofsoundandlightalarms |
| Saving protection | Automatic shutdown (can be set for 0-30 minutes) |
| Antenna | Built in |
| Material | High strength engineering plastics |
| Communication | Real time(RF-M4386-SI44/RF-EM4386-SI44) |
| Freqencey/Interval | 430~432MHz、433.05~434.79MHz/25k |
| Transmit power | ≤10mW |
| Operation | 2 cross joystick or 4 linear joystick |
| Number of buttons | 6 (display screen)+6 (side buttons/optional)+2 (optional 1.5 inch OLED information display screen) |
| Selection switch | 6pcs |
| Work Power | 7.4VDC(Li-On rechargeable) |
| Working current | ≤200mA |
| Standby current | ≤50mA |
| Status display | Max LED*4+LED*5(Display) |
| EMS | Push-pull emergency stop button |
| Protection Grade | IP65 |
| Size | 290.5mm x 195.3mm x 170.6mm |
