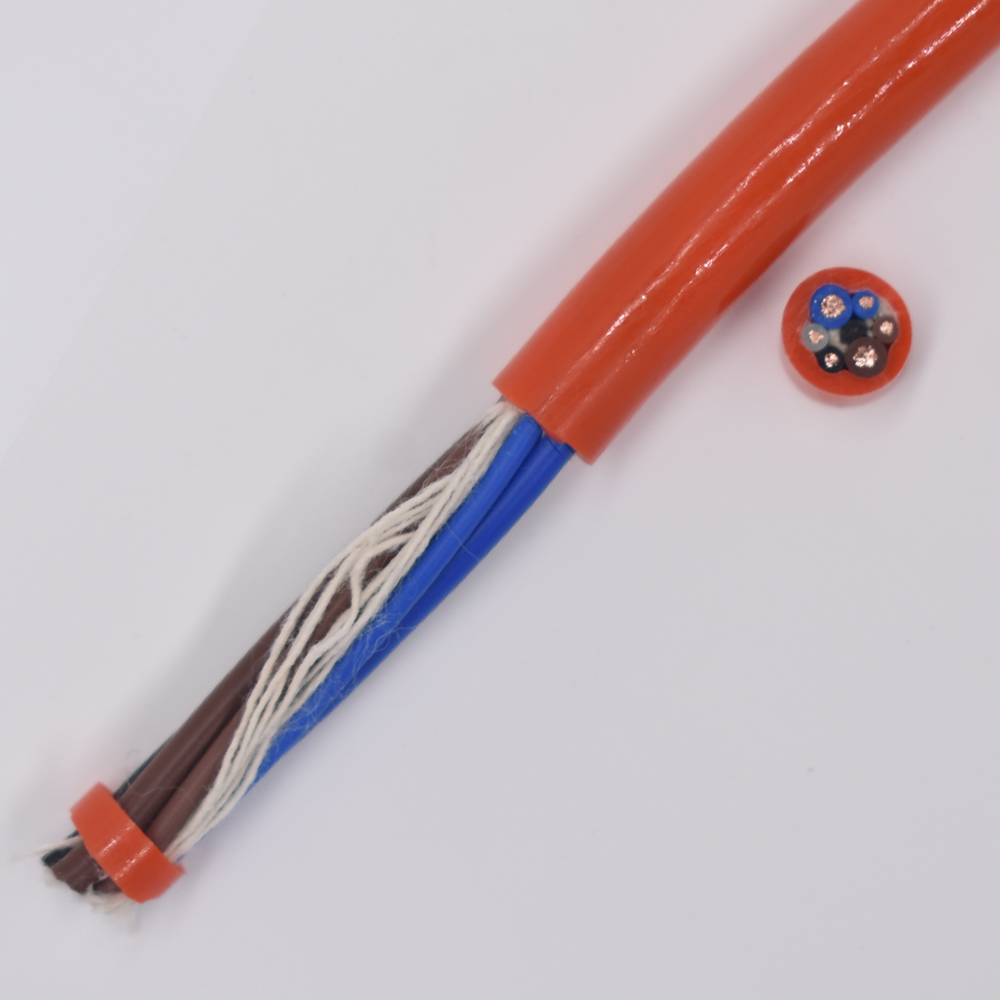

Drag chain cable

Application scenarios: Industrial electronic systems, industrial automation systems, warehousing equipment, robot systems, fire protection systems, hardware machinery, woodworking machinery, supply systems

Product Details

Shape: Circular
Tensile components: cotton thread/PVC strip
Conductor: Oxygen free copper wire/Tin plated copper wire
Insulation: TPE blend/high flexibility PVC
Sheath material: High flexibility composite PVC
Functional advantages: Soft, oil resistant, capable of reciprocating movement, and resistant to bending
Application scenarios: Industrial electronic systems, industrial automation systems, warehousing equipment, robot systems, fire protection systems, hardware machinery, woodworking machinery, supply systems

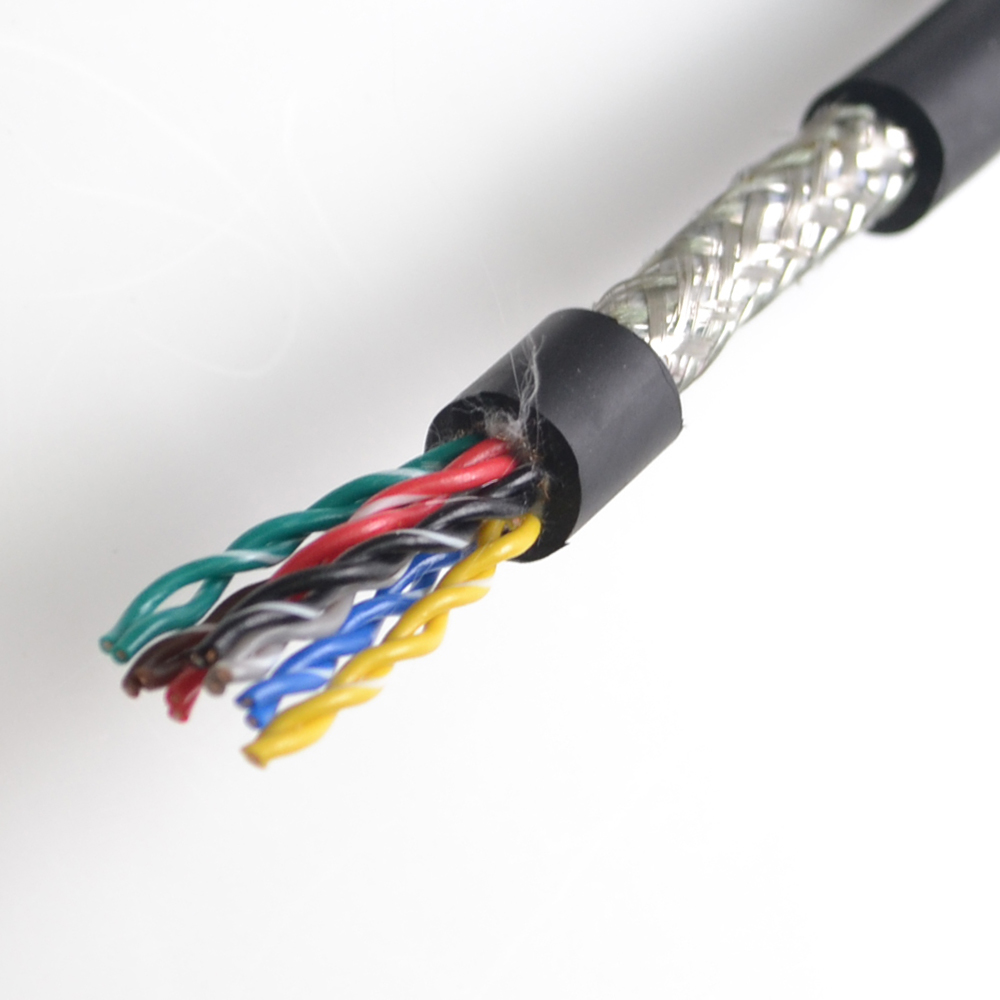

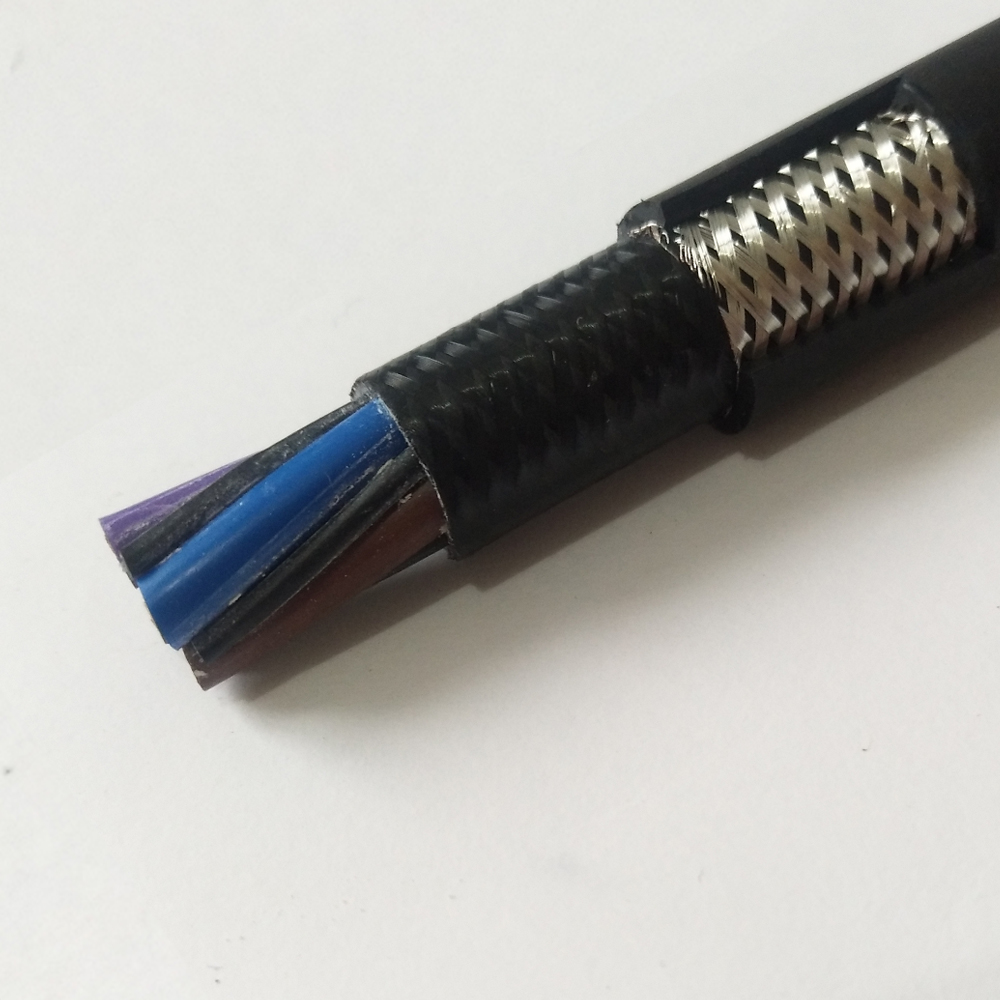

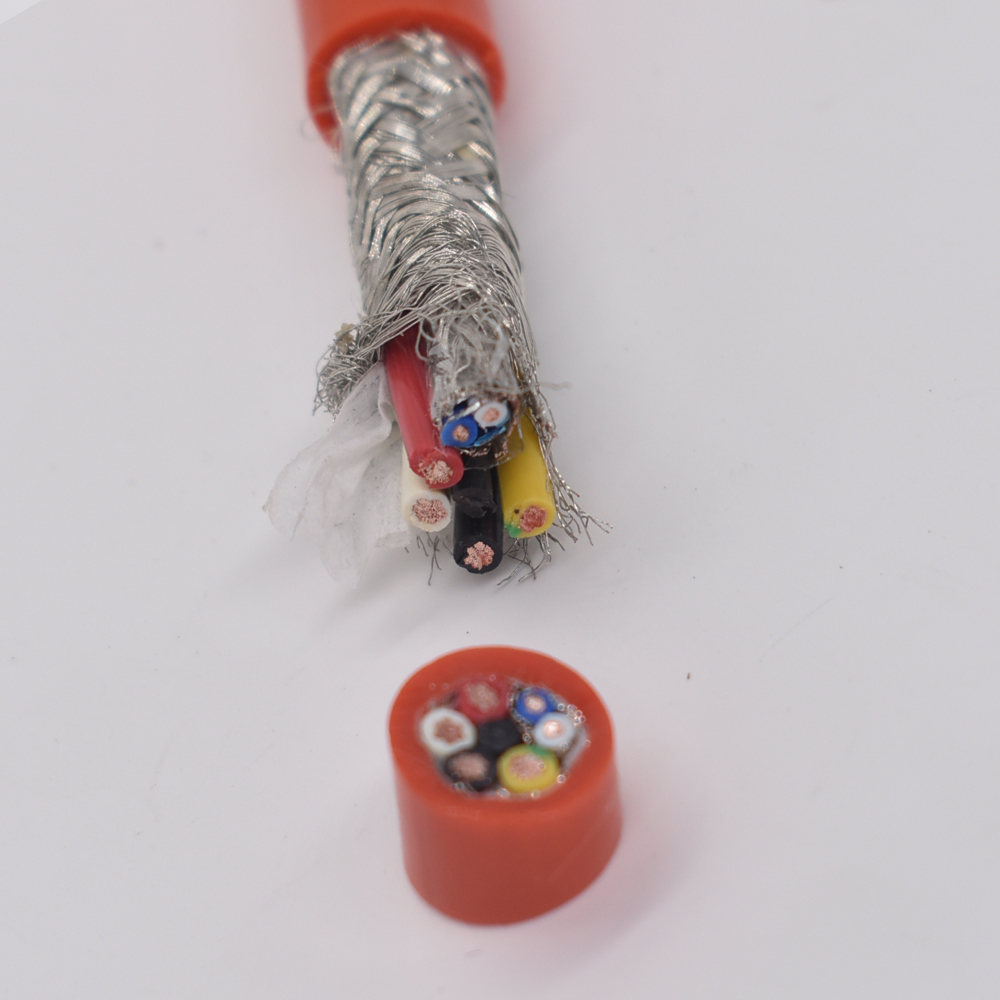

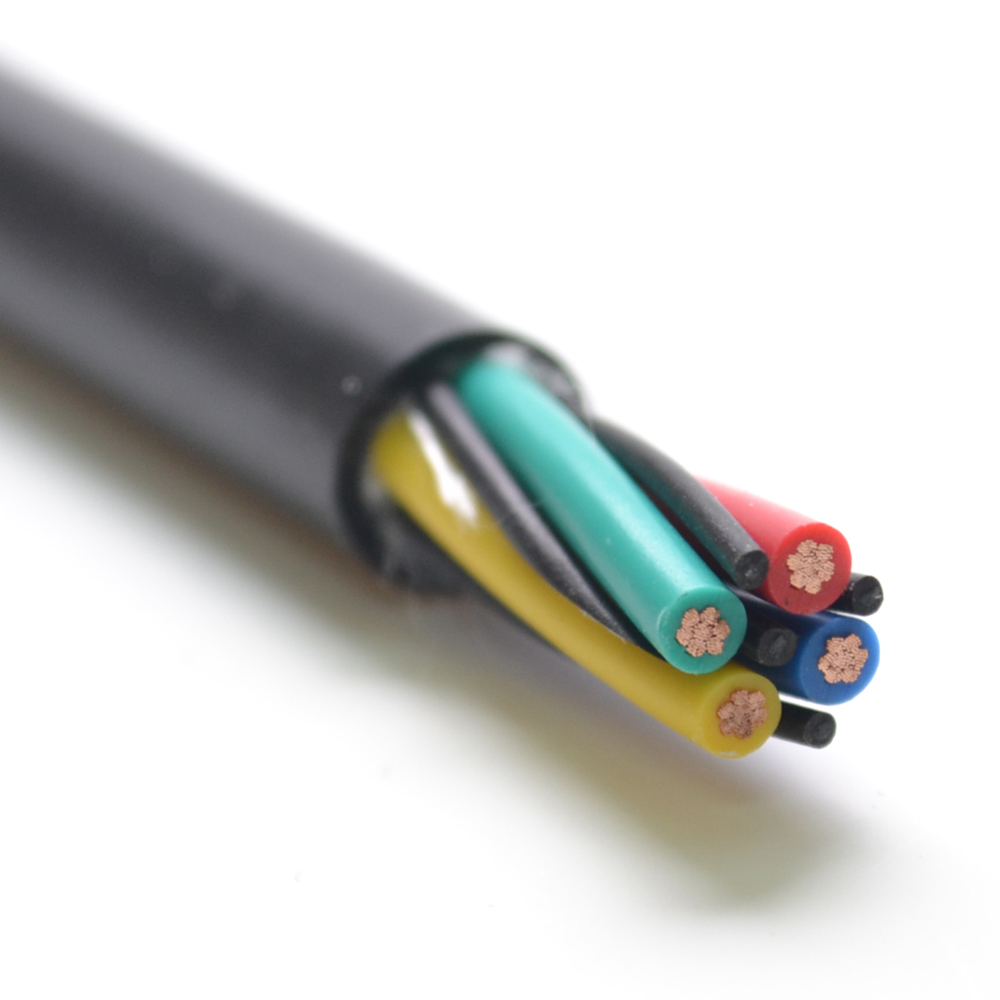

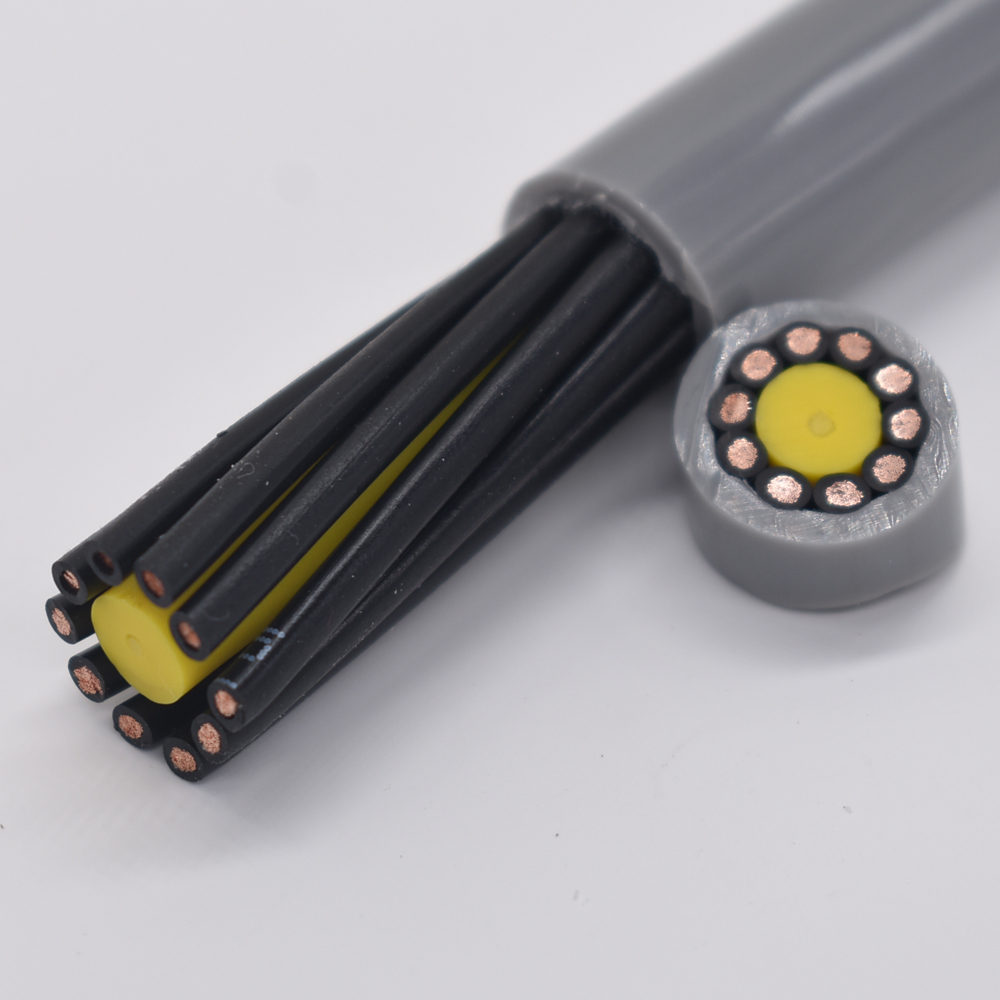

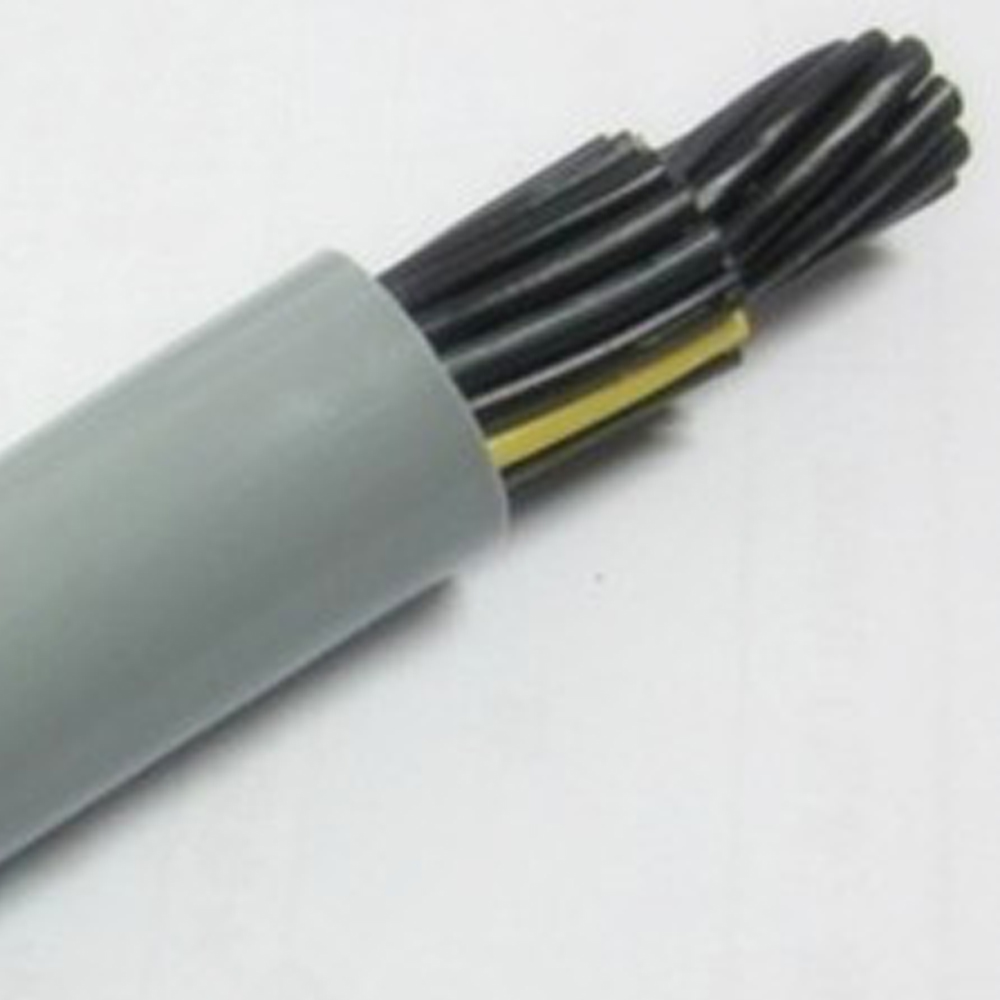

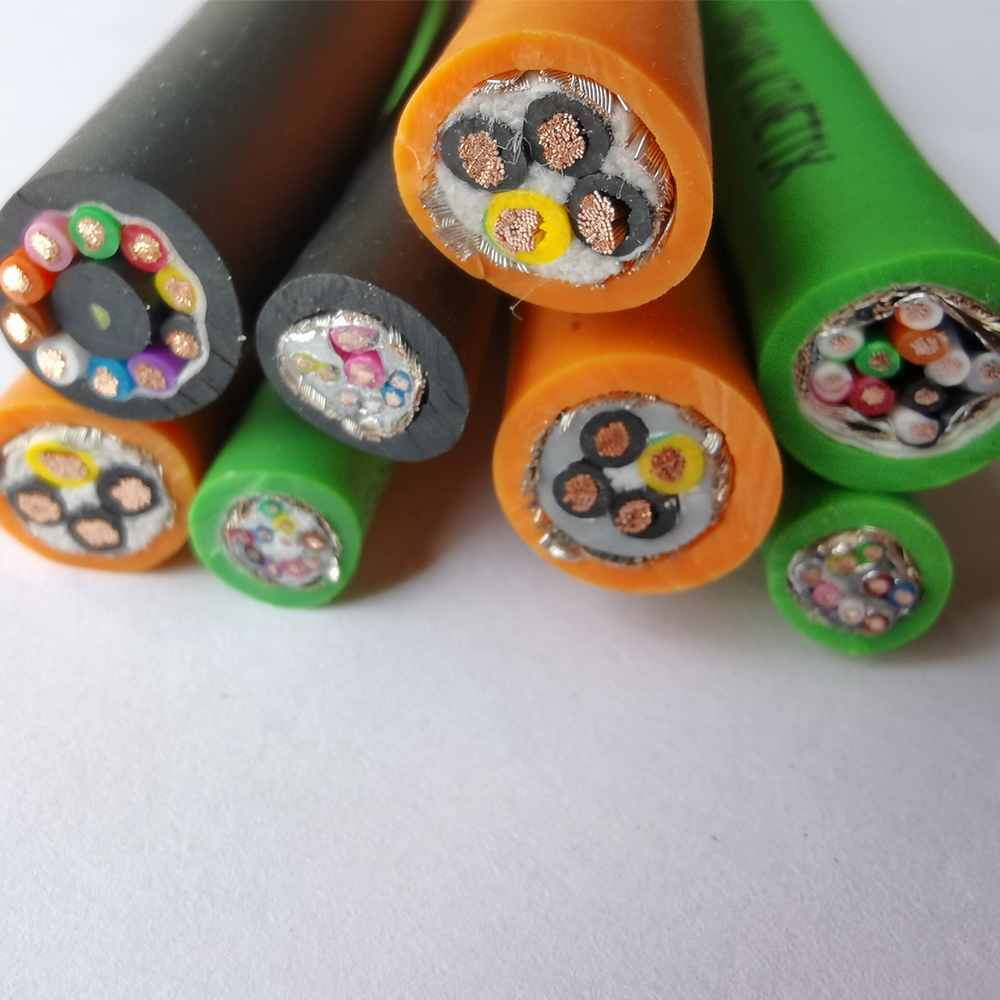

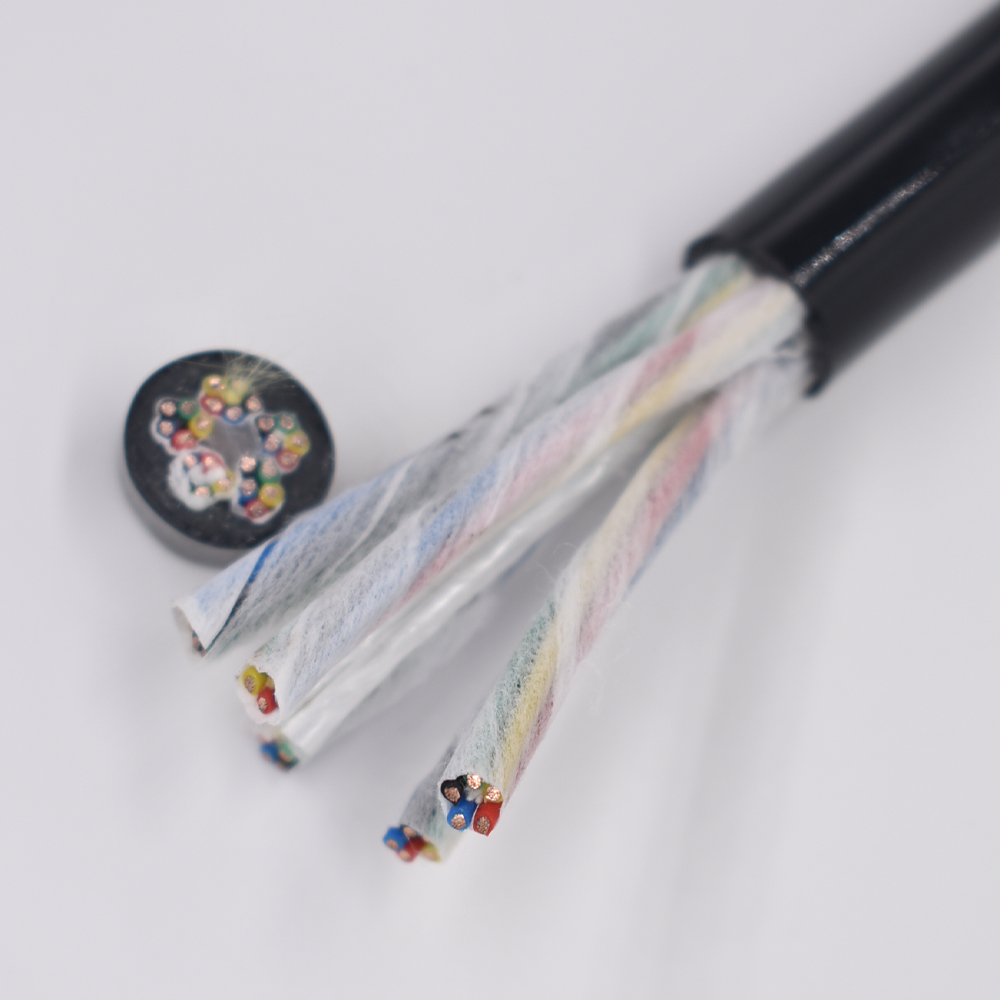

Product images



Common material description


Sheath material

Waterproof polyurethane 95A Anti hydrolysis, corrosion-resistant, can withstand high and low temperatures of -40-90 ° C, 95A belongs to customized hardness, reducing stretching rate Can be used for underwater robots and working conditions that require wall penetration or towing
Conventional polyurethane 85A Oil resistant, torsion resistant, wear-resistant, can withstand high and low temperatures -20-90, 85A belongs to standard hardness, good softness Can be used for industrial automation, robotic arms, and field exploration
Waterproof polyurethane 85A Anti hydrolysis, corrosion-resistant, anti twist, can withstand high and low temperatures of -40-90, 85A belongs to standard hardness, good softness Can be used for underwater mobile devices, windmill power generation (can rotate 720 degrees), petroleum and petrochemical industries,
Matte polyurethane Oil resistant, corrosion-resistant, torsion resistant, wear-resistant, can withstand high and low temperatures of -40-90 degrees, with a rough surface and no adhesion between them Can be used for beauty and medical beauty, partially replacing imports, with a better surface sensory experience
Ding Qing (modified PVC) Oil resistant, torsion resistant, wear-resistant, can withstand high and low temperatures of -40-90, 75A, environmentally friendly material, belonging to a relatively economical special material Can be used for reciprocating industrial automation, CNC machine tools, carving machinery
Low smoke and halogen-free Open flames cannot burn, self extinguishing, halogen-free, slightly hard to the touch Can be used in airports, schools, high-speed trains, and crowded places
Floating TPV The material is lightweight, waterproof, corrosion-resistant, and can withstand high and low temperatures of -40-90 degrees Celsius,      Can be used for underwater robots, large-scale aquaculture, and ocean exploration
Elastomer The material is soft, conventional PVC wear-resistant, and can withstand high and low temperatures of -15-70 degrees Celsius,      Can be used for low-speed operation or indoor mobility, such as indoor elevators



Insulation material

Insulation material name Material properties Application scenarios
Low smoke halogen-free insulation Open flames cannot burn, self extinguishing, halogen-free, slightly hard to the touch Can be used in airports, schools, high-speed trains, and crowded places
Automotive insulation 80 ° Environmentally friendly materials, high tensile strength, better insulation performance, can achieve thin insulation skin, control outer diameter: high temperature resistance of 80 degrees Can be used for reciprocating industrial automation, CNC machine tools, carving machinery
Automotive insulation 105 ° Environmentally friendly materials, high tensile strength, better insulation performance, can achieve thin insulation skin, control outer diameter: high temperature resistance of 80 degrees Can be used for reciprocating industrial automation, CNC machine tools, carving machinery
PE Waterproof, good transmission performance,  Used for all signal transmission fields, anti-interference
TPE Low temperature resistance -60-40, halogen-free Can be used in cold regions, cold storage, Antarctic scientific research
TPEE Tear resistant, high and low temperature resistant, mainly anti twist Can be used in industrial automation, robotic arms, high-strength anti twist applications
JR-70  Ordinary PVC is also the most cost-effective insulation material Can be used for all ordinary insulation materials
SR-PVC Ultra thin insulation, higher than JR-70 Can be used for all ordinary insulation materials or occasions with insulation resistance requirements



Copper wire

Copper wire material name Material properties Application scenarios
Bare copper wire Oxygen free copper wire, with few impurities and good conductivity Suitable for all electrical occasions
Tin plated copper wire The transmission system is superior to oxygen free copper conductors, coupled with tin plating on the surface for oxidation resistance

Can be used for wet working conditions or underwater equipment
Silver plated wire Low density, good transmission performance Can be used for aerospace, military equipment, and high-precision transmission equipment
