HC-20S

• The key mode and SN code can be modified through Win7 and Win8 systems
• The functions such as jogging, pressing and jumping, and interlocking can be modified
• It can be used with a copy machine to read programs

Product Details

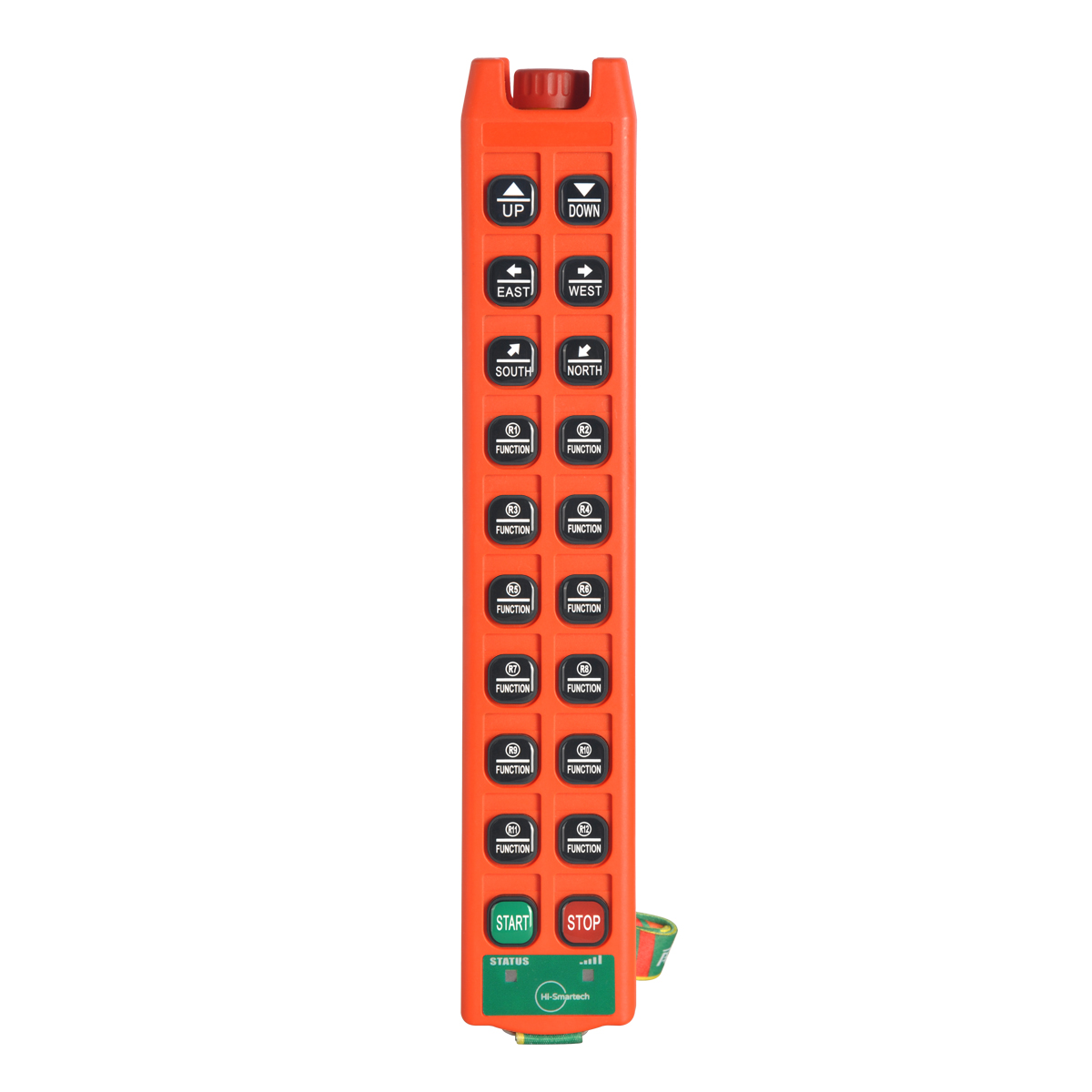

Transmitter's Parameters: HC-20S TX

• Material: Glass-Fiber PA

• Protection level: IP65

• Frequency range:UHF:425-446 MHz

• Transmitter power: ≤10dBm

• Transmitter power supply: Lithium Rechargeable Batteries
• Safety code: 32 bits (4.3 billion)
• Temperature range: -35℃~80℃
• Controlling distance: Approx 100m
• Size:
• Weight:

Receiver’s Parameters : HC-20S RXC

• Material: Glass-Fiber PA
• Protection level: IP65
• Frequency range optional: UHF:425-446 MHz
• Receiver sensitivity: -110dBm
• Receiver power supply optional: 48/220/380V AC/DC (optional)
• Output contactor capacity: 8A sealed relay output (with AC 250V/10A relays, 10A fuse)

• Cable length: 1.6m
• Safety code: 32 bits (4.3 billion)
• Temperature range: -35℃~80℃
• Size: 210 x 162 x 107 mm
• Weight: 1220 g
